digga mini-anchor-drive Goulburn - Goulburn Farm Machinery

Anchor drives for mini loaders up to 3.5T

DOWNLOAD BROCHURES

Screw Anchor - Mini Loader MM-14K

TALK TO A SALESPERSON

First Name*

This field is required

Last Name*

This field is required

Phone Number*

This field is required Not a valid number!

Email Address*

This field is required This is not a valid email.

Questions/Comments

reCAPTCHA is required

{{mail.labelFlagSubscribeForMarketing}}

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Mini Anchor Drive GALLERY

Click on the images below to enlarge.

512400 image

512401 image

512402 image

512403 image

512404 image

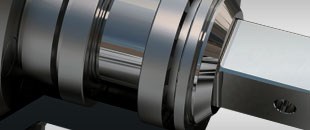

512405 image

512406 image

Model Specifications

Specifications	MM-14K
Max Torque @ 205 Bar	14,206 Nm
Motor	Char-Lynn Bell
Pressure Valve Fitted	N / A
Energy Control Valve	N / A
Max Pressure	Do not exceed 205 bar @ 70 lpm
Max Flow	Do not exceed 70 lpm @ 205 bar
Max Continuous Power	Do not exceed 25Kw (33hp)
Overall Length	612 mm
Diameter	289 mm
Weight (no linkage / hitch)	62 kg
Std Output Shaft	75 mm Square
